Particle Standard Reagent

Particle Standard Reagent

HS Series

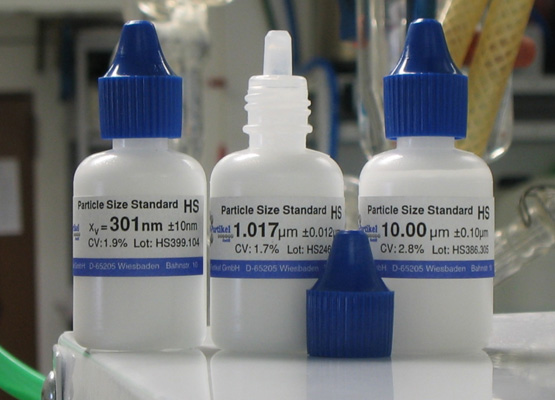

Size Calibration Standards for Particle Sizing Instruments

  • In the case of equipment that measures particle size without particle counting, a relatively high concentration of particle standard is required.
  • Exact calibration is possible for the LS series as it is manufactured in a 1~3% concentration which is optimal to Particle Counting Instrument.
  • Provides NIST traceability.
  • A certificate is provided, and detailed explanations of the calibration preparation procedure are specified on the back side.

Various size

Products of various sizes from Nanosphere(nm) to Microsphere(µm) are provided, and in addition, customizing to the desired size is possible according to the user's needs.

NIST Traceable Size Standards
Size Calibration Standards for Particle Sizing Instruments - HS Series
Description Nominal Diam Volume Solids P/N
HS-Series
Traceable to SI
Nanosphere Size Standards
50 nm 20 mL 1% HS0005-20
100 nm 20 mL 1% HS0010-20
150 nm 20 mL 1% HS0015-20
200 nm 20 mL 1% HS0020-20
250 nm 20 mL 1% HS0025-20
300 nm 20 mL 1% HS0030-20
350 nm 20 mL 1% HS0035-20
400 nm 20 mL 1% HS0040-20
500 nm 20 mL 1% HS0050-20
600 nm 20 mL 1% HS0060-20
700 nm 20 mL 1% HS0070-20
800 nm 20 mL 1% HS0080-20
900 nm 20 mL 1% HS0090-20
HS-Series
Traceable to SI
Microsphere Size Standards
990 nm 20 mL 1% HS0099-20
1 μm 20 mL 2% HS0100-20
1.5 μm 20 mL 2% HS0150-20
2 μm 20 mL 2% HS0200-20
2.5 μm 20 mL 2% HS0250-20
3 μm 20 mL 2% HS0300-20
4 μm 20 mL 2% HS0400-20
5 μm 20 mL 2% HS0500-20
6 μm 20 mL 2% HS0600-20
7 μm 20 mL 2% HS0700-20
8 μm 20 mL 2% HS0800-20
9 μm 20 mL 2% HS0900-20
10 μm 20 mL 2% HS1000-20
15 μm 20 mL 2% HS1500-20
20 μm 20 mL 2% HS2000-20
25 μm 20 mL 2% HS2500-20
30 μm 20 mL 2% HS3000-20
40 μm 20 mL 2% HS4000-20
50 μm 20 mL 2% HS5000-20
60 μm 20 mL 2% HS6000-20
70 μm 20 mL 2% HS7000-20
75 μm 20 mL 2% HS7500-20
90 μm 20 mL 3% HS9000-20
100 μm 20 mL 3% HS10000-20
140 μm 20 mL 3% HS14000-20
220 μm 20 mL 3% HS22000-20
